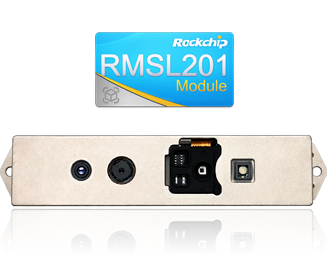

RMSL201-1301

典型應(yīng)用方向

主要特性

  • Dedicated image DSP enables high precision，and flexible to various requirements.
  • One-Stop Face Payment solution, including DSP, AI-Engine, depth algorithm, optics design.
  • Optimization for face-imaging, present better portrait under various ambient lighting.
  • Support 3rd party anti-spoofing algorithm support converged-payment.
  • Support implement algorithm in module, easier deployment.
Module Item Parameter Comment
Speckle Projector Laser type VCSEL PQCW-BC-4-W0940-S3
Wavelength 940 nm(Typ.) 940±10 nm@50℃
FOI 92.1°±3° H70.8°,V74.2°
Focus Distance 35cm
Pins 16 Pin B To B
IR Camera Sensor 1/4” CMOS Sensor OV9282-GA4A(b&w)
Resolution 1M 800H*1280V Pixels
Interface MIPI
Sensor ID OV9282
Focus Type FF
FOV 77.00°±3° (OPT)
80.50°±3° (ME)
Focus Distance 33cm
Pins 20 Pin B To B
RGB Camera Sensor 1/4” CMOS Sensor OV5695-GA4A(color)
Resolution 5M 1944H*2592V Pixels
Interface MIPI
Sensor ID OV5695
Focus Type AF
FOV DIAGONAL =84.0°
HORIZONTAL =56.6°
VERTICAL =71.5°
Pins 30Pin B To B
Flood Sensor ID SFH 4775S
FOI 80°
Wavelength 940 nm(Typ.)
Spectral Width （FWHM） 37nm
Proximity Sensing IR Emitter ID LTE-C249
Optical Sensor ID LTR-507ALS-01
Peak Wavelength 850nm(Typ.)
Spectral Width （FWHM） 30nm
FOI ±15°
Detection Distance 0~30cm
Interface I2C
Pins 16Pin B To B
Module Baseline 40mm
Precision ±1mm@60cm
Weight NA
Size (L x W x H) 88.57mm x 18.0mm x 17.1mm
