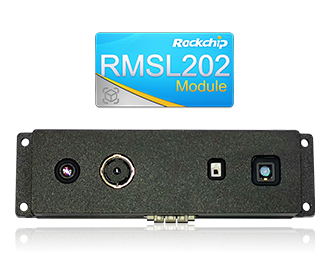

RMSL202-1200

典型應(yīng)用方向

主要特性

  • Dedicated image DSP enables high precision，and flexible to various requirements.
  • One-Stop Face Payment solution, including DSP, AI-Engine, depth algorithm, optics design.
  • Optimization for face-imaging, present better portrait under various ambient lighting.
  • Support 3rd party anti-spoofing algorithm support converged-payment.
  • Support implement algorithm in module, easier deployment.
Module Item Parameter Comment
Speckle Projector Laser type VCSEL PQCW-BC-4-W0940-S3
Wavelength 940 nm(Typ.) 940±10 nm@50℃
FOI 92.1°±3° H70.8°,V74.2°
Focus Distance 35cm
Pins 16 Pin B To B
IR Camera Sensor 1/4” CMOS Sensor OV9282 -GA4A(b&w)
Resolution 1M 800H*1280V Pixels
Interface MIPI
Sensor ID OV9282
Focus Type FF
FOV 77.0°±3° (OPT)
80.50°±3° (ME)
Focus Distance 33cm
Pins 20 Pin B To B
RGB Camera Sensor 1/4” CMOS Sensor CMK-OT1286-FV1 V1.0
Resolution 5M 1944H*2592V Pixels
Interface MIPI
Sensor ID OV5695
Focus Type AF
FOV DIAGONAL =84.0°
HORIZONTAL =56.6°
VERTICAL =71.5°
Pins 30Pin B To B
Module Baseline 40mm
Precision ±1mm@60cm
Weight NA
Size (L x W x H) 61.8mm x 17.53mm x 11.81mm
